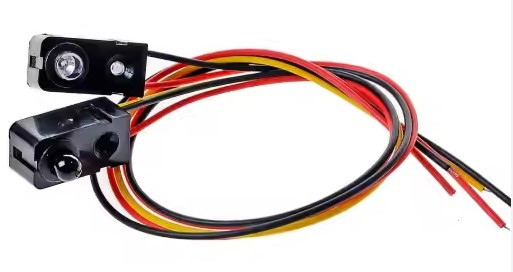

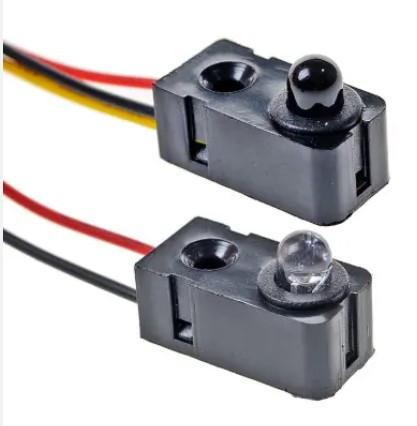

Description:
Sensing distance:2-30cm
Induction mode:light speed cutoff(infrared)
Working voltage:DC 5V
Working current:transmitting(20mA) receiving(10mA)
Output mode:high and low level NPN normally open
Output current:70mA(relay can be directly driven)
Launch angle:＜5°
Receiving angle:＜10°
Response time:2ms
Working temperature:-10℃~60℃
Working environment:indoor(not waterproof)
Size:21*11*6mm
Line length:30cm
Service life:50000 hours
Wiring mode:
Red-power supply-5VCC
Black-negative electrode-GND
Yellow-output-OUT(NPN）
Note:the wiring mode shall not be reversed,otherwise the receiving end may be burnt
