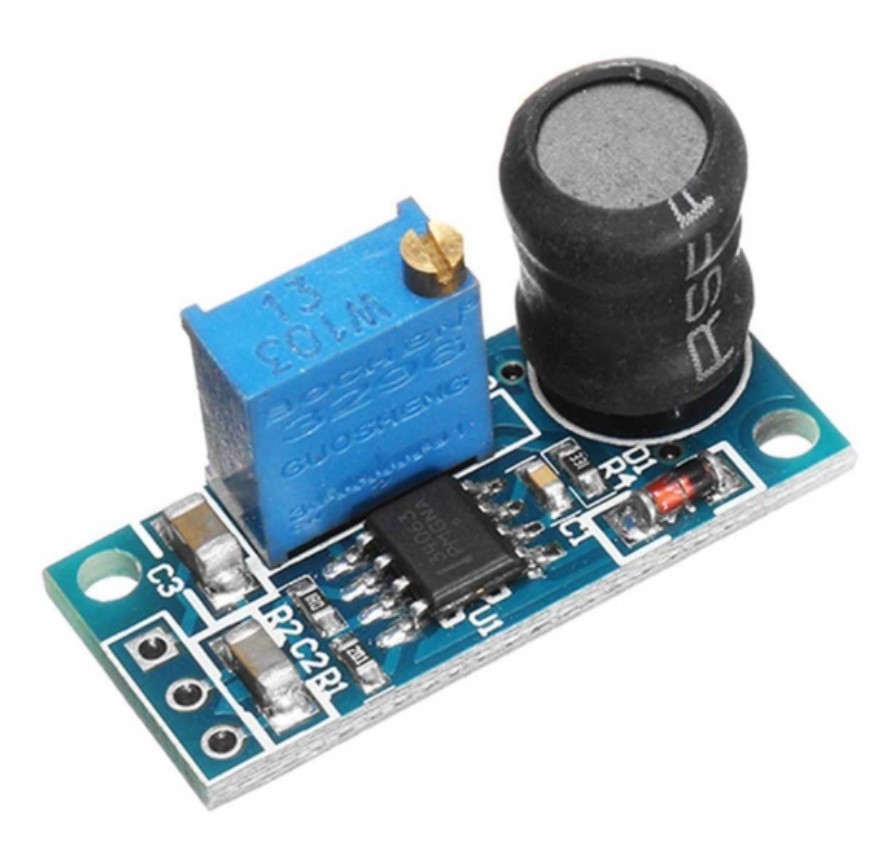

MC34063A Battery Booster

LC boost module MC34063 boost power supply are based on a small chip MC34063A booster ic. Output voltage can adjusted with the potentiometer.

Feature:

1. Low input voltage, high output voltage.
2.The output voltage is adjustable.
3. The module size is small.

Technical parameters:

Input voltage range: 3.6 V – 30 V.
Output voltage of 3.8 V to 36 V – (load regulation is less than 5% under ideal conditions)
Output current 1.5A (peak) NOTE: Recommend this module within the load on the power consumption is 0.8 W.

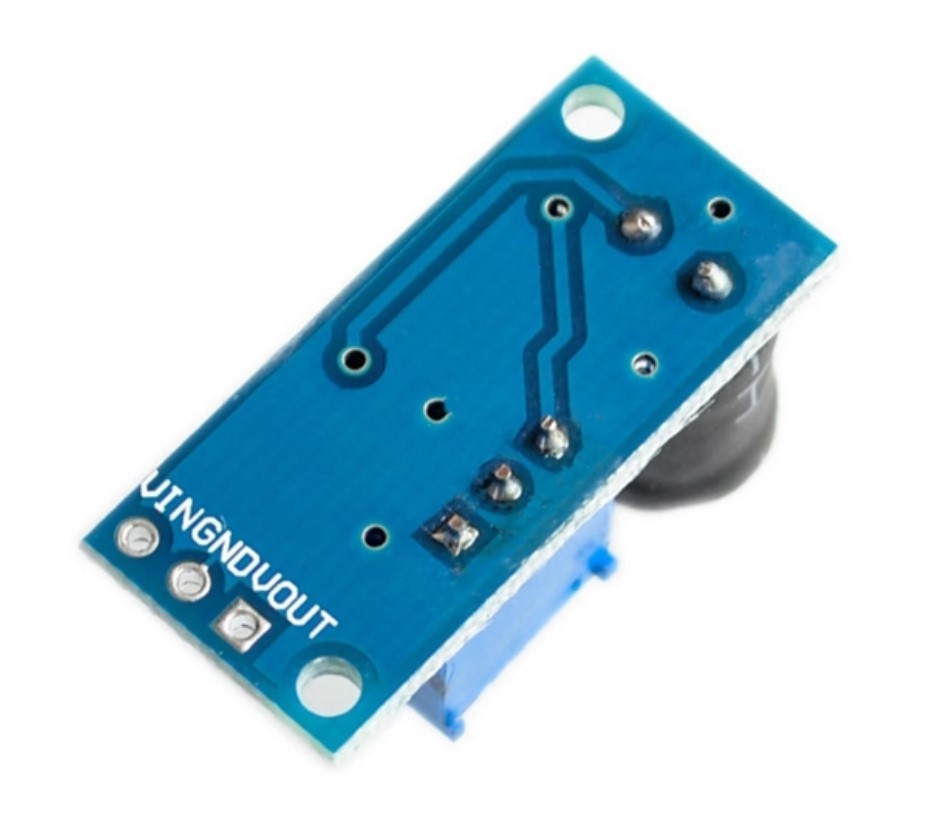

VIN: low input voltage.
GND: public land.
OUT: output increase of voltage.

Recommend an 100uF || 100nF filter capacitors to the ground on input and output to reduce switching noise and EMI.
