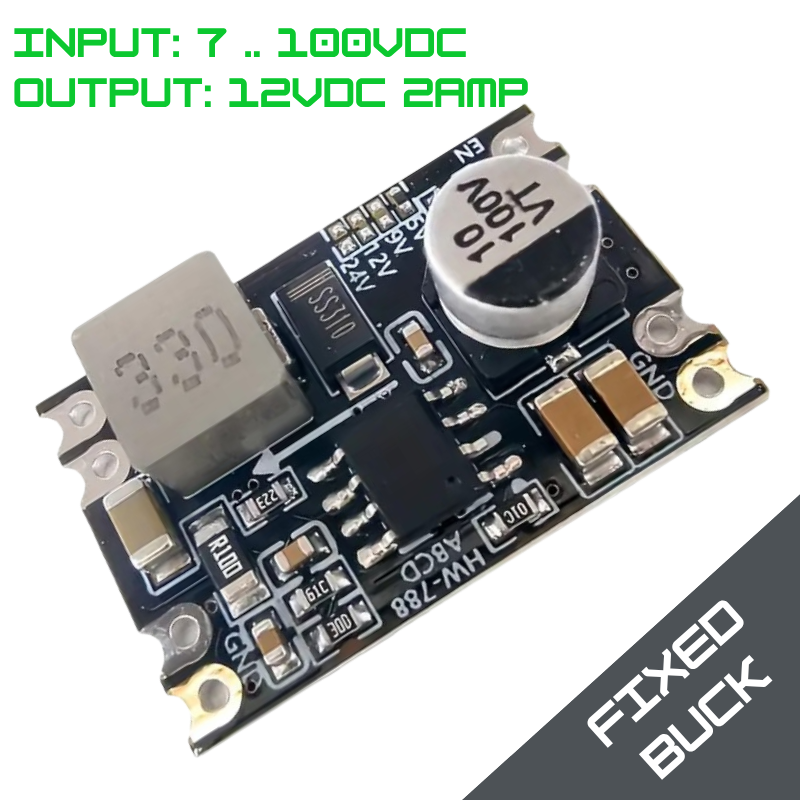

The DC-DC voltage reduction module is designed to transform high direct current into lower voltage energy. It utilizes microelectronics technology, ensuring high efficiency and a small footprint. User-friendly and straightforward to install.
NOTE: The ON/OFF terminal has Positive ON Level. Connect ON pin to input voltage for Auto-On.
CAUTION: Voltagees above 50VDC is dangerous. Use with caution.
Key Specifications:
- Fixed outputs: 12V DC
- Input range: 14-100V
- Protection: Overheating and Overload shutdown
- Maximum output current: 3A, with a sustained current limit of 2A
- Highest conversion efficiency: 96%
- Output ripple: Less than 30mA
- Output accuracy: ± 0.1V
- No-load current: < 1.2mA
- Operating temperature: -25 °C to +85 °C
- Operating humidity: 20% and 90%
- Dimensions: 25.5mm X 16.5mm X 7mm
- Operating frequency: 1MHz.
- Lifespan: 35,000 hours without failures.
