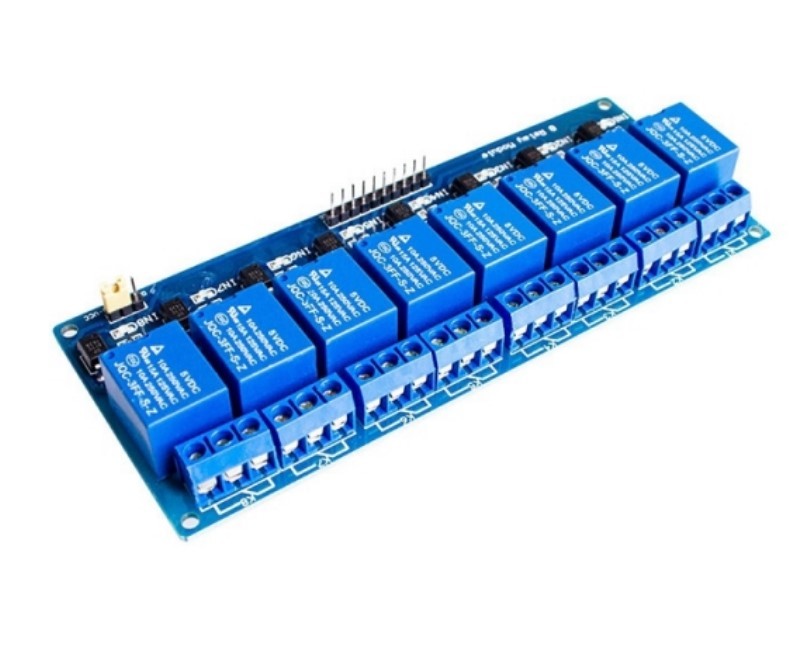

8 Channel 12V Relay

Relay 8 Way – Opto Isolated

If you want to switch up to 8 high current / high voltage loads from a microcontroller, this 12V relay board can do it.

It contains 8 x 12V relays rated at 10A/250V AC (DC 30V/10A). Each relay is switched on/off by an opto-isolated digital input that can be connected directly to a microcontroller output pin. It only requires a voltage of approx 1.0V to switch the inputs on but can handle input voltages up to 5V. This makes it ideal for both 5V and 3.3V devices.

Quick Spec

8 X 12V relays

Each relay rated at 10A / 250V

Power supply 12V

Fully Opto-isolated input signals

Input signals from 1.0V to 5V

Individual indicator LEDS for each relay

Power On LED indicator

Isolated Input GND
