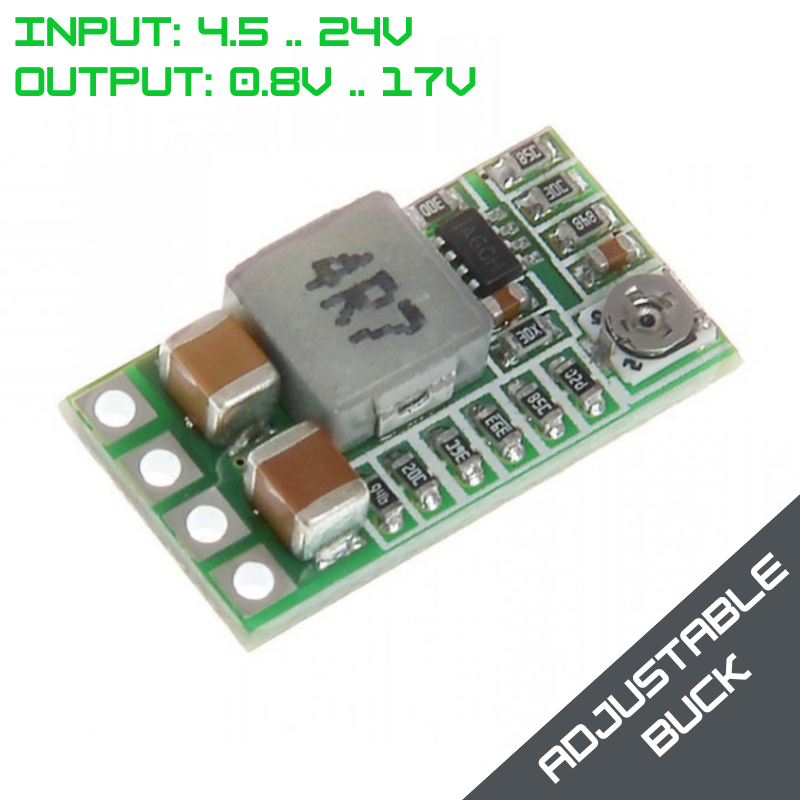

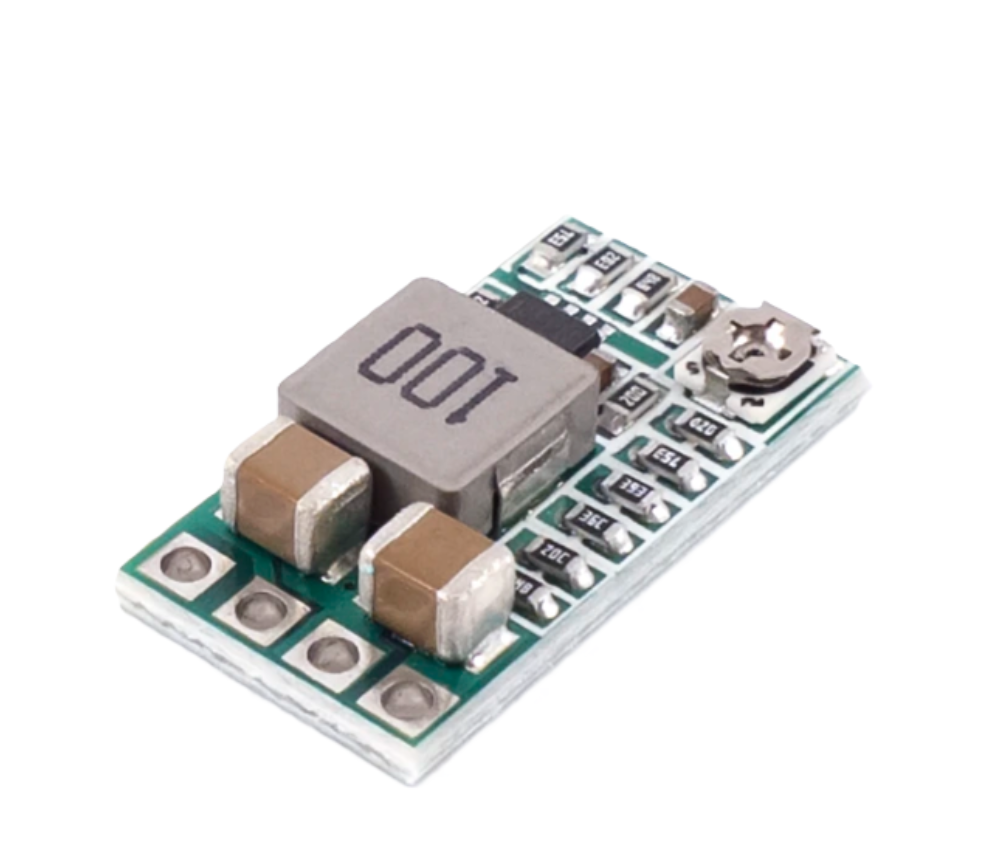

The Ultra-Small Size adjustable DC-DC Step Down Power Supply Module is a versatile and compact buck converter capable of providing adjustable and fixed output voltages. It is designed for efficiency and reliability, making it suitable for a wide range of applications. Ideal for replacement of LM78xx Linear regulators. Pinout includes ENABLE pin. (Leave open if not used). Solder pads on bottom side for fixed voltage output.
Key Features:
- Input voltage: DC 4.5-24V
- Output current: 3A MAX (2A Constant)
- Conversion efficiency: 97.5%
- Switching frequency: 500Khz
- Output ripple: 20mV
- Load adjustment rate: +1%
- Voltage adjustment rate: 0.5%
- Dynamic response speed: 5% 200uS
- Size: 18 x 10 x 3.8mm
