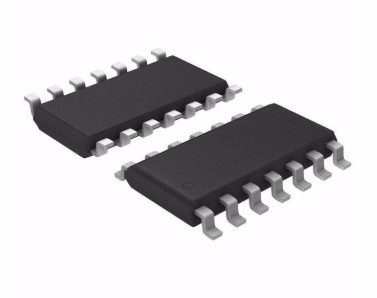

The 74HC08 is a versatile AND gate integrated circuit (IC) belonging to the 74HC family of high-speed CMOS logic devices. This IC contains four independent 2-input AND gates, each performing a logical AND operation on its inputs. The output of each gate is HIGH only when both of its inputs are HIGH; otherwise, the output is LOW.
Known for its high-speed operation and low power consumption, the 74HC08 is widely used in digital logic circuits for a variety of applications. It operates over a broad voltage range, typically from 2V to 6V, making it compatible with various logic levels. The 74HC08 is available in multiple package options, including DIP (Dual In-line Package) and SOIC (Small Outline Integrated Circuit), providing flexibility for different board layouts.
Key Features
- Quad 2-input AND gates
- High-speed operation
- Low power consumption
- Wide operating voltage range (2V to 6V)
- TTL compatible inputs
- Multiple package options available (DIP, SOIC)
Typical Applications
- Basic logic functions
- Digital signal processing
- Data processing
- Control systems
- Instrumentation
- Consumer electronics
Datasheet
Note: The accuracy of the data in the link provided cannot be guaranteed. If information is in any way critical it is recommended that a sample qty is ordered initially.
YouTube Links
Note: The links provided is not always for the exact same product but will hopefully provide some insight and/or more information about the subject.
Logic Gates – AND, OR, NOT, NAND & NOR
Digital Logic – implementing a logic circuit from a Boolean expression.
