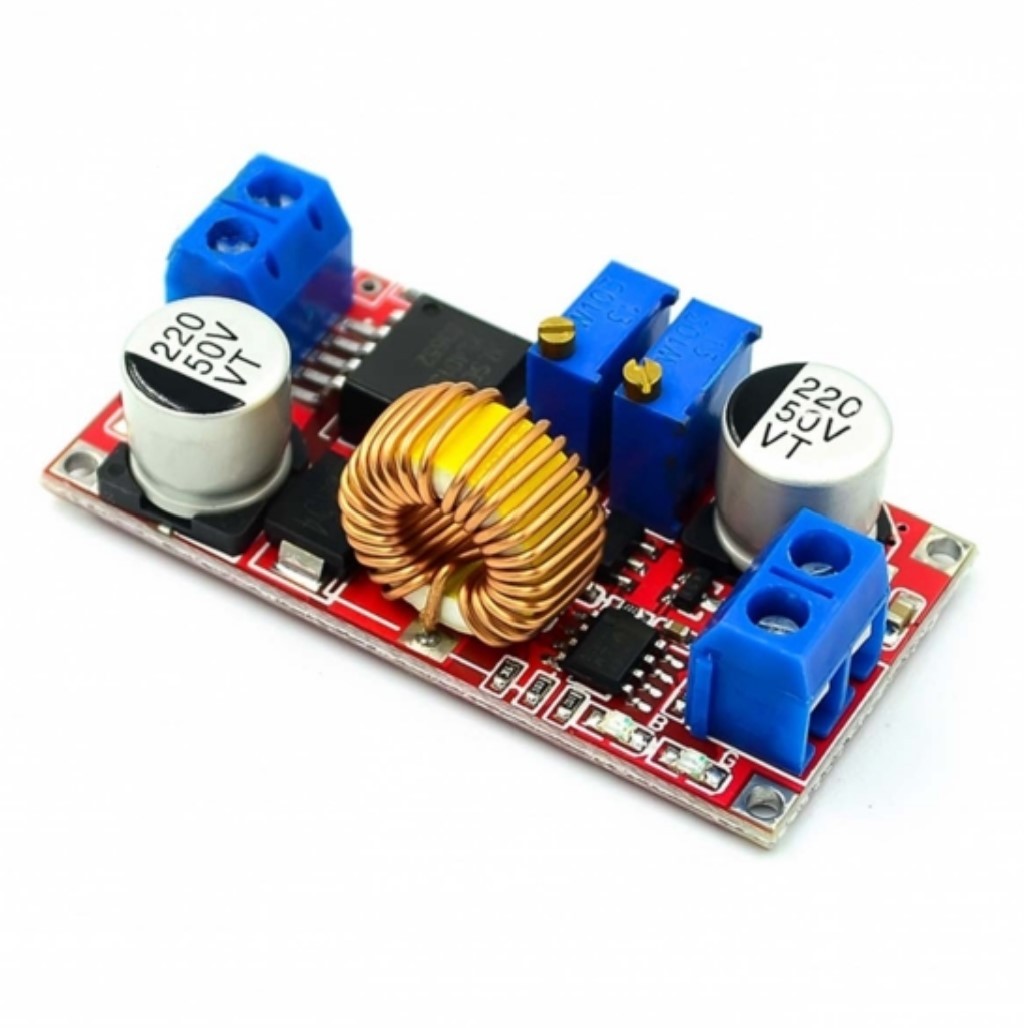

XL4015 5A Power Supply with CC and CV

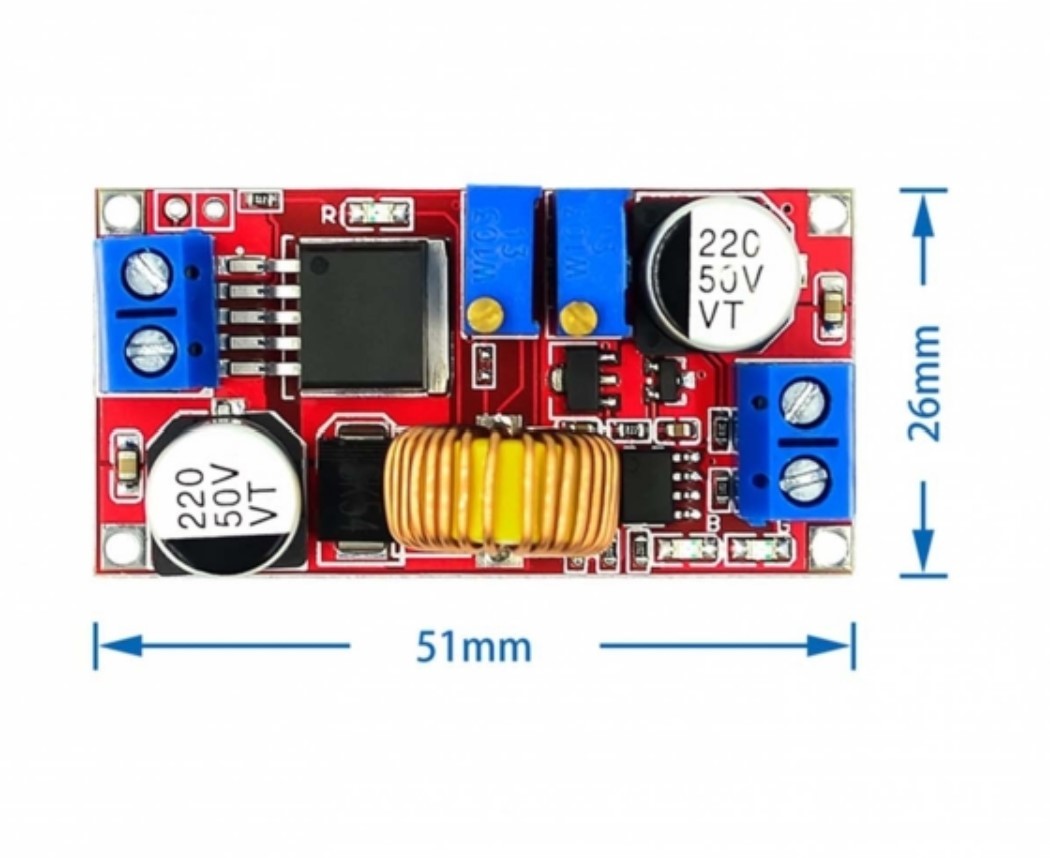

XL4015 5A Power Supply with CC and CV - Image 2

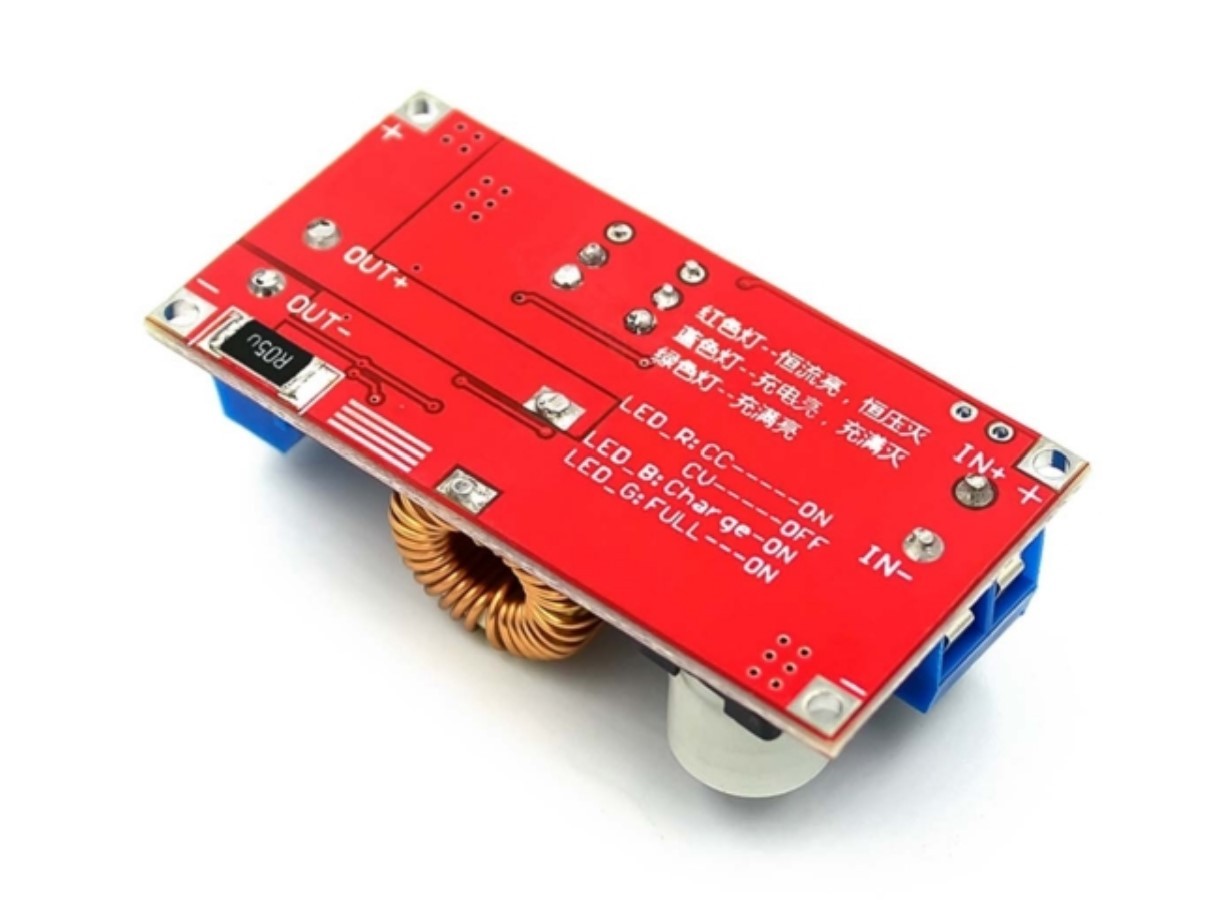

XL4015 5A Power Supply with CC and CV - Image 3
,

XL4015 5A Power Supply with CC and CV

R 66.00

The XL4015 is a high-performance, fixed-frequency (180KHz) PWM buck (step-down) DC/DC converter module capable of driving a 5A load with high efficiency and low ripple. Designed for versatility, this module features adjustable constant voltage (CV) and constant current (CC) control, making it an ideal component for building custom laboratory power supplies, battery chargers, or LED drivers. Its robust design allows it to accept input voltages ranging from 8V to 36V, providing a stable, adjustable output voltage from 1.25V to 32V

Availability: 20 in stock

SKU: C1258 Categories: ,

DC-to-DC Adjustable Current limit and Adjustable Voltage Battery Step down Switching supply. Perfect for keeping loadshedding batteries topped up.

NOTE! TO PREVENT DAMAGE:

  • DO NOT CONNECT WITH OPEN CIRCUIT OUTPUT
  • Does not have Reverse voltage protection!

IC: XL4015

Input: 5V – 32V DC

Output: 0.8V – 30V DC

Current Max (< 1 minute): Adjustable 0.1Amp to 5A

Current Constant: Adjustable 0.1Amp to 3Amp

Output Power: 75W maximum

Operating frequency: 180KHz

Working temperature: -40 to + 85 degrees

Conversion efficiency: up to 96%

Short circuit protection: Yes (limit current 8A)

Overtemperature protection: (automatically shut off the output after overtemperature)

Input reverse polarity protection: None, (if necessary, please insert a series high current diode ie A1010)

Weight 0.1 kg
