Technical Data :
-

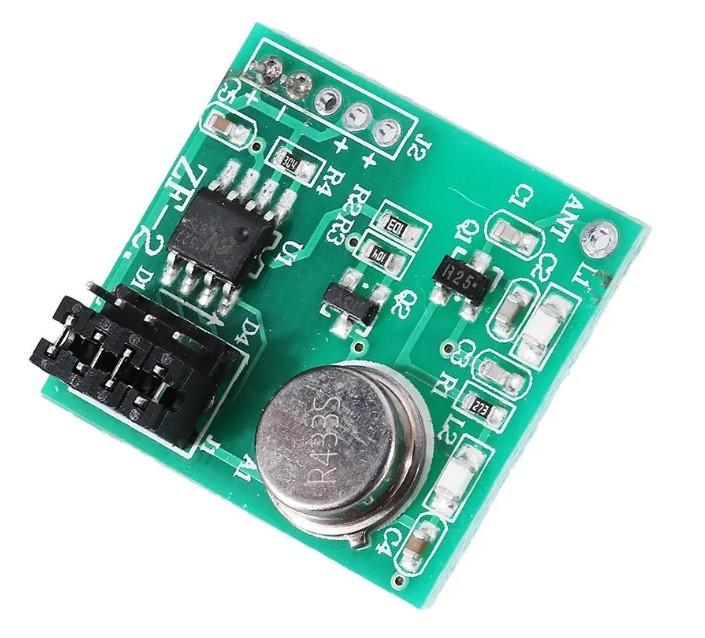

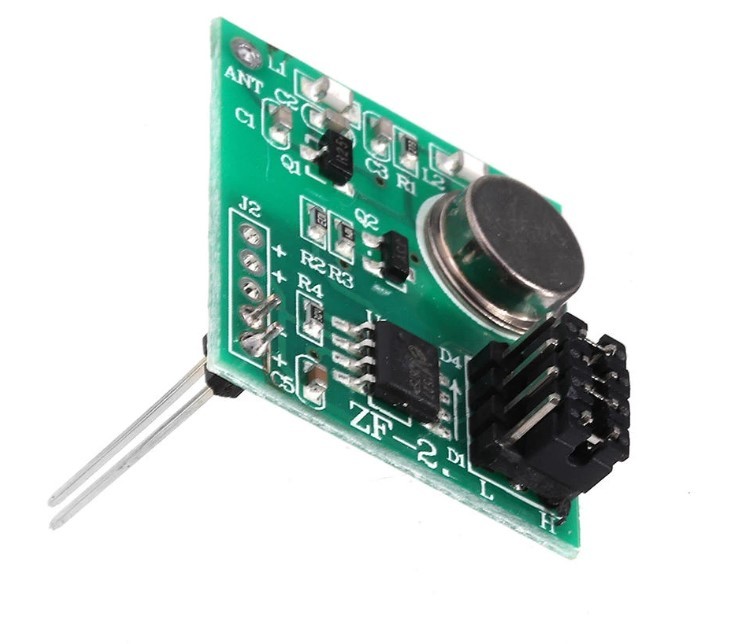

Product model: ZF-2 (with code)
-
Transmission frequency: 433.92MHZ
-
Working voltage: DC 9V ~12V
-
Modulation method: ASK
-
Quiescent current: 0uA
-
Working current: 8~10mA
-
Coding type: learning code (EV1527)
-
Radiated power: 10~15mW
-
Shooting distance: 100-200 meters (receiver sensitivity -108dBm)
-
Volume: 26.3mm*23.3mm*9mm
PIN |
NAME |
Function |
1 |
ANT |
RF signal input pin, this pin needs to be connected to the antenna |
2 |
12V- |
DC power supply negative input pin |
3 |
12V+ |
DC power supply positive input pin |
Rated parameter |
Symbol |
Value |
DC power supply |
VDD-VSS |
9V-12V |
Storage temperature range (TS) |
TSTG |
-12°C to 75°C |
Welding temperature |
+260°C |
|
