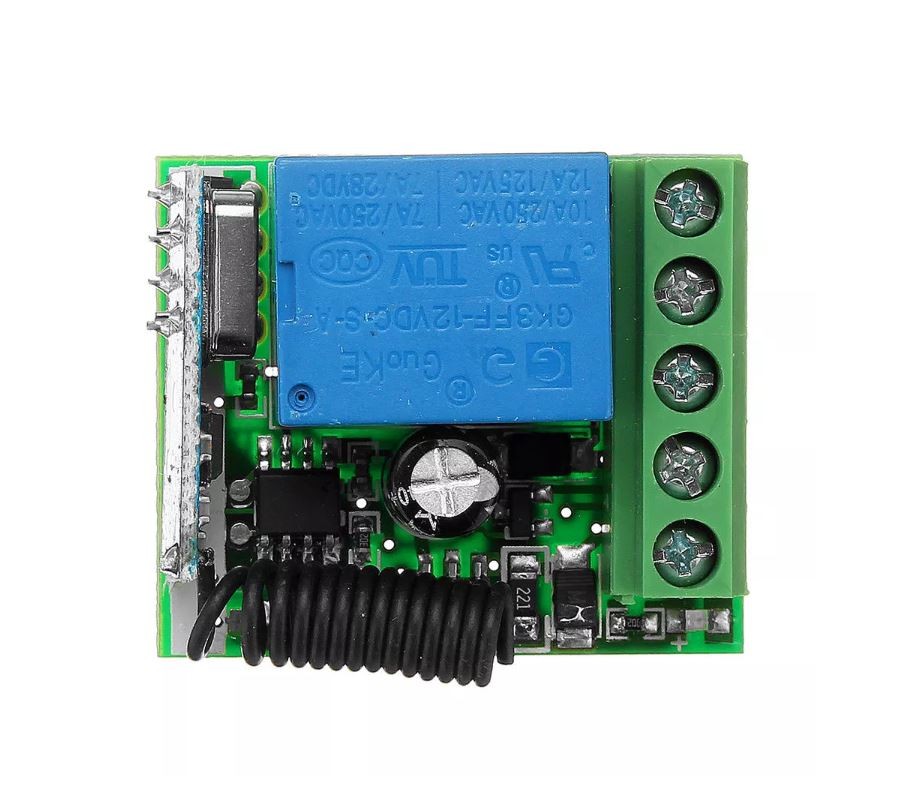

433MHz 1CH RF Remote Control Receiver Board

Specification:

– Input Voltage: DC10-14V

– Standby Current: <5MA

– RF Frequency: 433MHz

– RF Working mode: Super heterodyne receiver

– Receiver Sensitivity: >97dBm

– Remote Control Distance: >100 meter(In open environment)

– Decoding: MCU Software decoding

– Can store upto 50 transmitters each with own mode

– Support remote control type: Fixed code, learning code

– Channel: 1CH

– Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)

– Wiring Method: Fixed wiring terminal

– Rated load:10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC

– Output:Normally open,Common,Normally closed

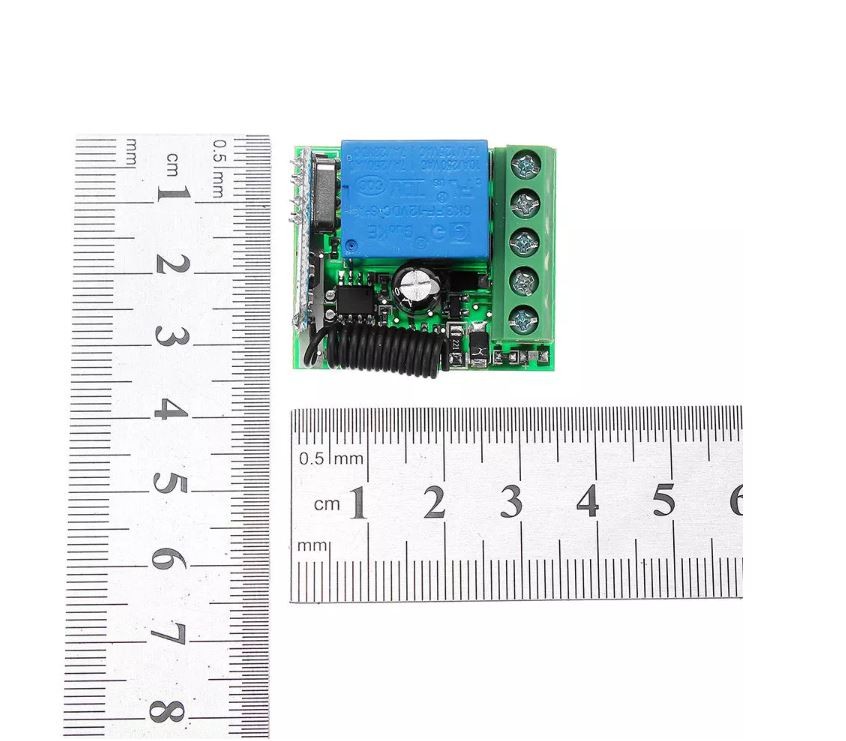

– Dimension:3.5cmx3cmx1.8cm

Modes:

Momentary:

Push the remote button , the relay connects, release the remote button , the relay dis-connects.

Toggle:

Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .

Latching:

Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Delay mode :

Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically .

Setup:

Clearing the code :

Push the learning button on the receivers for 8 times , the codes will be cleaned .

After clearing all remotes will stop working.

Learning the code :(momentary)

Push the learning key on the receiver once time , it comes into momentary setting mode .

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button , LED indicator on the receiver board will flash then come off .

After 3 seconds, the LED indicator will be on again , learning successfully .

Learning the code : ( Toggle )

Push the learning key on the receiver twice time , it comes into toggle setting mode

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button,LED indicator on the receiver board will flash then come off.

After 3 seconds , the LED indicator will be on again , learning successfully .

Learning the code 🙁 Latching )

Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”.

For example : button A = ON , button B = OFF

Push the learning key on the receiver triple time , it comes into latching mode .

Wait for a moment , the LED indicator on the receiver board will flash then come off.

Push the remote button A .

LED flash for 5 times .

Push the remote button B .

Led flash for 5 times .

After 3 seconds , the LED indicator will be on again , learning successfully.

A = ON , B = OFF .

Learning the code 🙁 Time delay mode )

Push the learning key on the receiver forth time , the time dealy for 5 seconds .

Push the learning key on the receiver fifth time , the time delay for 10 seconds .

Push the learning key on the receiver sixth time , the time delay for 15 seconds .

The LED indicator will be off .

Push the remote button , LED flashes and off .

After 3 seconds , the LED indicator will be on again , learning successfully .
