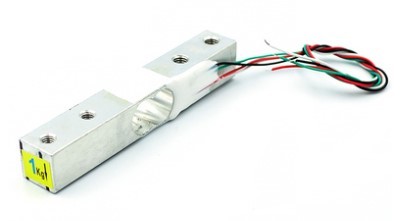

1kg Load Cell (for use with HX711)

Technical Parameters

Range: 0-1kg

• Output sensitivity: 1.0±0.1mV/V
• Zero output: ±0.1mV/V
• Repeatability: 0.05% F.S
• Creep: 0.05% F.S/3min
• Nonlinear: 0.05% F.S
• Lag: 0.05% F.S
• Output impedance: 1000±5% ohms
• Zero temperature drift: 0.05% F.S/10°C
• Temperature sensitivity drift: 0.05% F.S/10°C

Lead Cable

• Motivation is positive: red
• Incentive negative: green
• Signal is positive: black
• signal Negative : white
