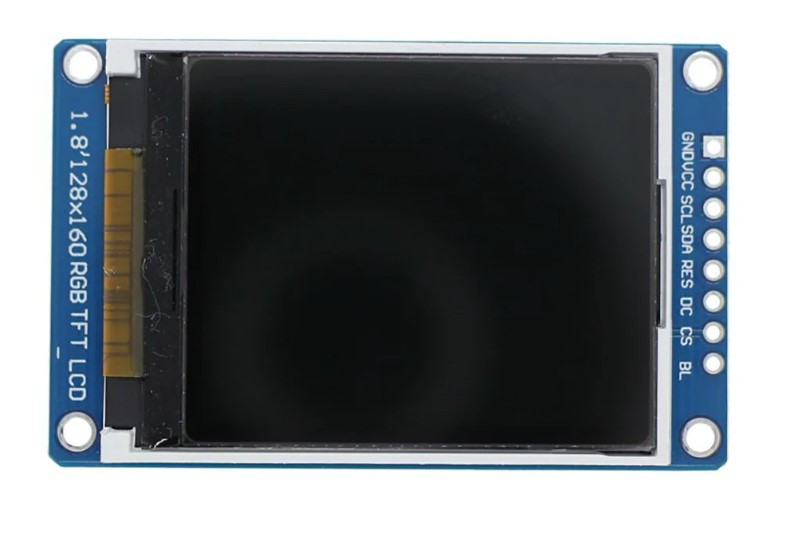

1.8 inch 128×160 SPI Full Color RGB TFT LCD Display Module

Specifications:



SIZE 1.8inch

Display Mode a-TFT

Display Format Graphic 128RGB*160 Dot-matrix

Input Data SPI interface

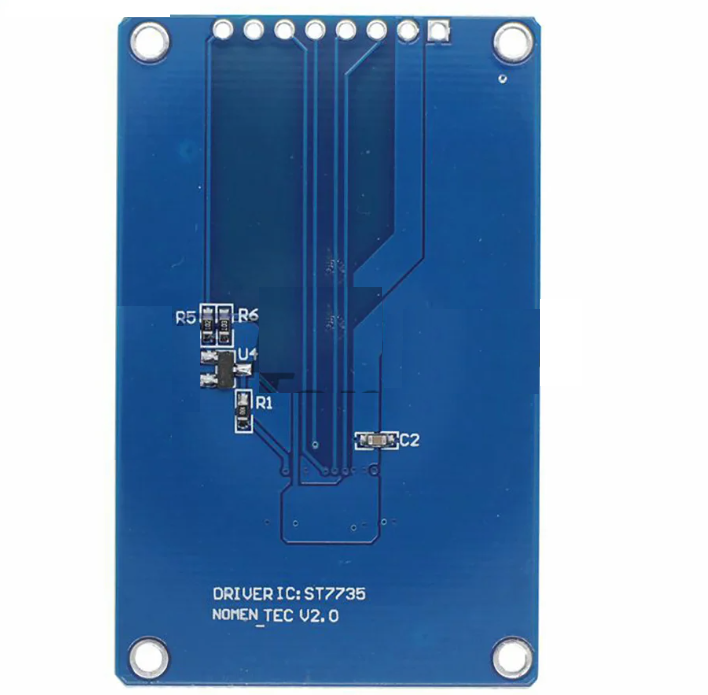

Drive IC ST7735S

Dimensional outline 35(W)*56 (H)*3.45+/-0.1(T)mm

Resolution 128RGB*160 Dots

LCD Active area 28.03 (W)*35.04 (H)

Pixel size 0.219(W)*0.219(H)

Viewing Direction 12 o’clock

Operating Temperature -20～70°C



Pin Descriptions：



PIN No Symbol Description

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is

executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 CS Chip Select

8 BLK Backlight control pin
